Structural Silicone Curtain Wall Systems

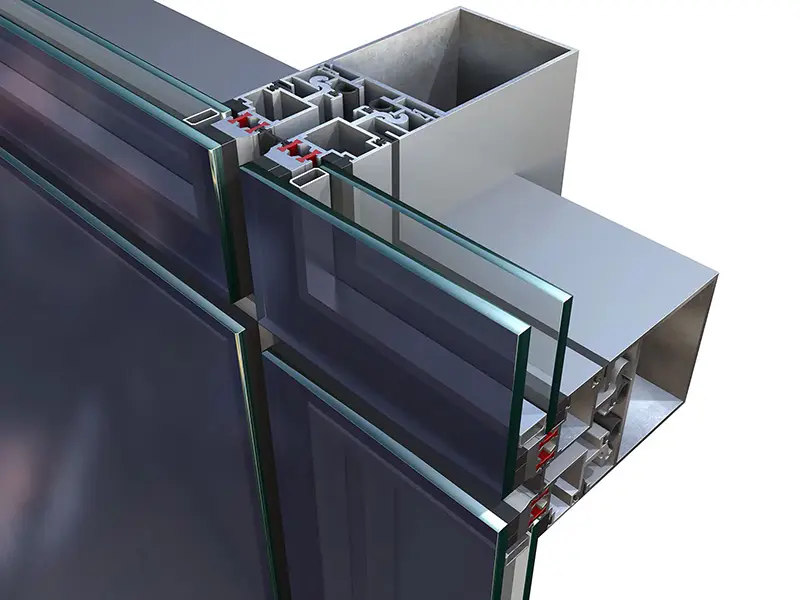

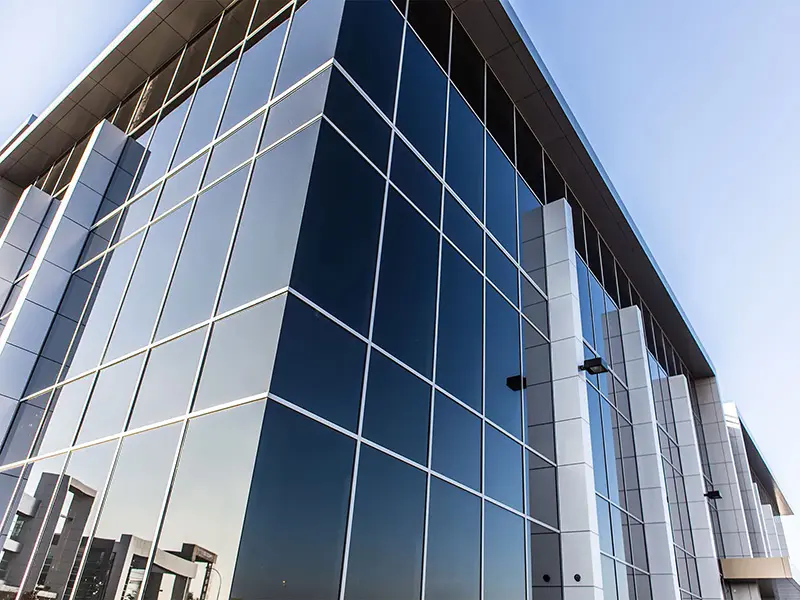

Structural silicone curtain wall systems are chosen when the design intent is a clean, flush-glass exterior with minimal visible framing. Instead of relying on exterior caps and pressure plates, the glass is structurally bonded to the supporting frame so the facade reads as continuous planes of glass with crisp, consistent joints. This approach is commonly selected for premium commercial buildings, corporate headquarters, hotels, showrooms, and public projects where transparency, daylight, and a refined architectural expression are core goals.

From an occupant perspective, the value is straightforward: clearer views, stronger daylight penetration, and a facade that feels calm and intentional rather than busy. For owners and project teams, the value is predictability when the system is designed and verified properly—clear joint geometry, controlled water management, and a defined replacement strategy at the panel level.

High-trust results come from alignment between design, fabrication, and installation. A structural silicone facade should be treated as an engineered building envelope: project-specific loads and movement expectations are addressed through the framing design, glass selection, joint sizing, and perimeter junctions. Mock-ups, documented QA records, and standardized inspection points help confirm that the facade delivers the intended air/water control and long-term visual consistency without relying on assumptions.

Design and configuration options

Strong outcomes start with a few decisions made early and kept consistent across the elevation. The visual language is driven by the module rhythm, the exterior joint width, corner logic, and the way spandrel zones are handled. If these rules change from area to area, the facade reads uneven and “assembled,” even when workmanship is good. A disciplined grid and consistent joint proportions are what make the flush-glass look feel premium.

Glass selection typically balances solar control, thermal comfort, safety requirements, and acoustic targets. Insulated glass units (IGUs) can incorporate low-emissivity coatings and gas fills to support stable indoor temperatures, while laminated layers may be used for safety, security, overhead risk areas, or improved sound control. Spandrel zones require careful coordination so color, reflectance, and backing materials remain stable and visually consistent over time.

Set the joint standard: define exterior joint width and keep it consistent across modules.
Lock the IGU strategy: match coatings and build-ups to comfort goals and facade exposure.
Confirm joint geometry: size silicone bite and depth to the manufacturer’s requirements.
Coordinate spandrels: align frit, insulation backing, and detailing to avoid read-through and color shifts.
Separate functions: keep water control, air sealing, and thermal breaks distinct in perimeter details.
Plan serviceability: define how a single panel can be replaced without compromising adjacent joints.

In practical terms: every edge, corner, and junction should have a clear job. When the visual rules and functional layers are not mixed, the system becomes easier to fabricate, install, test, and maintain.

Real-world performance: comfort and resilience

Real-world performance is mainly about managing weather exposure, building movement, and interior comfort expectations. Structural silicone systems do not depend on external caps to shed water; instead, they rely on disciplined jointing, gasket continuity, pressure management, and an intentional drainage route inside the frame. When drainage paths are continuous and unobstructed, incidental moisture is directed to weep points and out of the system rather than trapped inside.

Buildings move under wind, temperature swing, floor deflection, and long-term settlement. The facade must allow for this without overstressing glass edges or forcing movement into brittle interfaces. Correct joint sizing, controlled tolerances, and perimeter detailing help the assembly flex where it should, rather than concentrating stress in the wrong places.

Thermal performance depends on the frame’s thermal breaks and the IGU configuration. With appropriate coatings and build-ups, the facade supports stable indoor temperatures and helps reduce condensation risk at perimeter zones. Acoustic performance is influenced by laminated layers, cavity configuration, and airtight perimeter junctions; the silicone interface can help dampen vibration transfer, but the overall result still depends on continuous sealing and consistent installation quality.

Daylight and aesthetics are linked to these performance layers. The flush-glass expression reduces visual clutter, and consistent reflectance across vision and spandrel areas supports a uniform facade read in different lighting conditions.

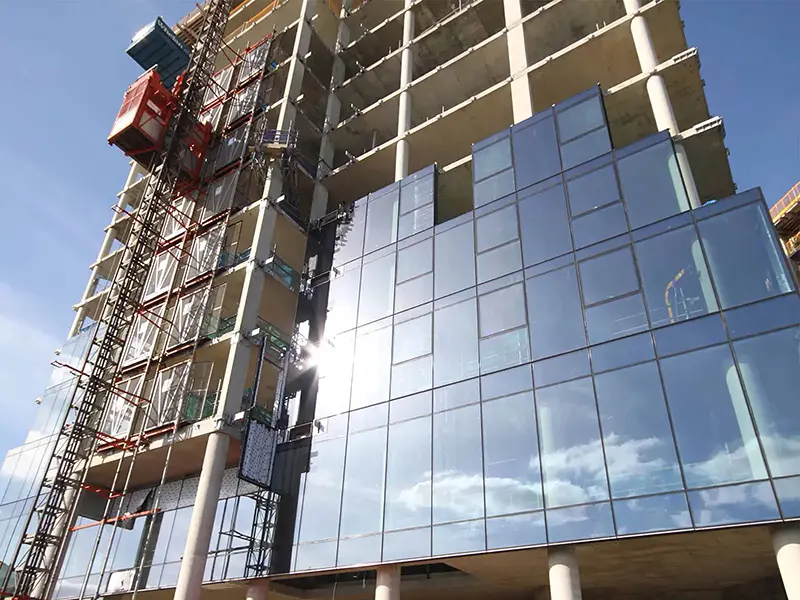

Fabrication, installation, and QA checkpoints

Installation discipline is what separates a facade that looks right on day one from one that continues performing year after year. Structural silicone performance depends heavily on surface preparation and joint geometry, which is why many projects prefer a controlled “shop-glazed” approach where bonding is completed in a factory environment under stable conditions. This improves repeatability, reduces contamination risk, and supports faster on-site enclosure because pre-glazed units arrive ready for installation.

On site, the logic is straightforward: confirm frame alignment and anchorage, verify tolerances, install setting blocks and gaskets correctly, position glass with consistent support, apply primers when specified, apply structural silicone with controlled bite/depth, and protect joints during curing. Perimeter seals, drainage continuity, and field verification are completed according to the project’s plan and acceptance criteria.

Geometry and tolerances: confirm alignment and joint consistency before glazing starts.
Surface preparation:
Sealant control:
Water path continuity:

High-trust delivery uses documented QA: mock-up reviews, checklists, product batch traceability for critical items, and project-appropriate testing. This keeps outcomes consistent across crews and phases and reduces late-stage surprises.

Limits, common mistakes, and choosing criteria

Structural silicone curtain wall systems are not a universal answer. They may not be suitable where surface preparation cannot be reliably controlled, where ongoing contamination is expected at joint edges, or where frequent rapid glass replacement is required without a defined access and replacement procedure. They also tend to underperform when joint geometry cannot be standardized early and tolerances cannot be held through fabrication and installation.

Common mistakes are predictable, and prevention is practical when it is planned from the start:

Mistake:Prevention:
Mistake:Prevention:
Mistake:Prevention:

Choose this when the project requires a flush-glass aesthetic with refined sightlines, and the team can enforce disciplined QA and verification. Consider alternatives when external caps are desired as part of the design language, site conditions prevent controlled bonding quality, or access and replacement planning cannot be defined and maintained.

Maintenance, lifecycle planning, and safe expectations

Maintenance works best as routine, not reaction. Plan visual checks after severe weather and schedule a detailed review at least annually for sealant lines, gaskets, perimeter junctions, and drainage openings. Cleaning is typically straightforward because the exterior surface is smooth—use non-abrasive methods, neutral cleaners, and thorough rinsing to avoid residue build-up around joint edges.

Structural silicones are designed for long-term exterior exposure, but lifecycle outcomes depend on joint design, workmanship, and environmental conditions. A realistic plan is condition-based: monitor joints, address localized defects early, and avoid letting minor edge issues become persistent water paths. When resealing or repairs are required, they should follow a defined procedure that includes careful removal, correct surface preparation, and re-application using the specified compatible products.

Glass replacement practicality improves when the project documents the panel logic clearly: glass types and coatings, edge and setting details, approved sealants/primers, and step-by-step replacement guidance. A high-trust handover package should include as-built joint dimensions, product datasheets, compatibility records, QA checklists, cleaning guidance, and an inspection log template. This documentation supports safe servicing across the facade’s lifecycle and helps future teams maintain performance without guesswork.

Frequently Asked Questions

Structural silicone systems achieve a flush-glass exterior by bonding the glass to the frame with engineered structural silicone, so exterior caps and pressure plates aren’t visible. Capped systems use external plates/caps to clamp the glass. Both can perform well, but structural silicone demands stricter control of joint geometry, compatibility, and surface preparation to maintain long-term reliability
